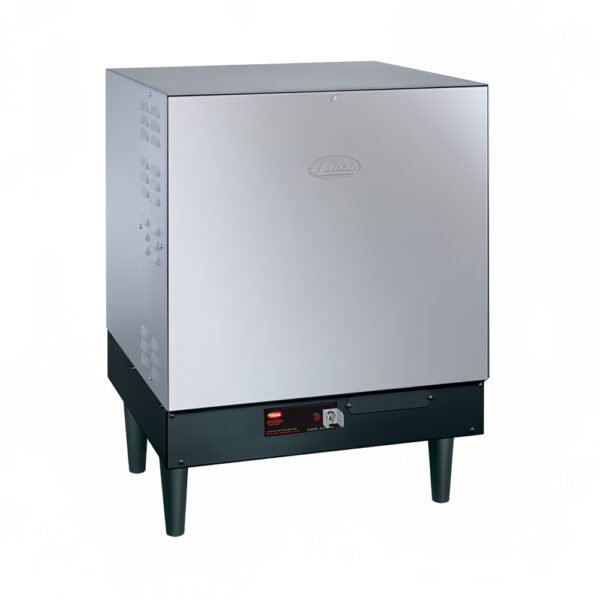

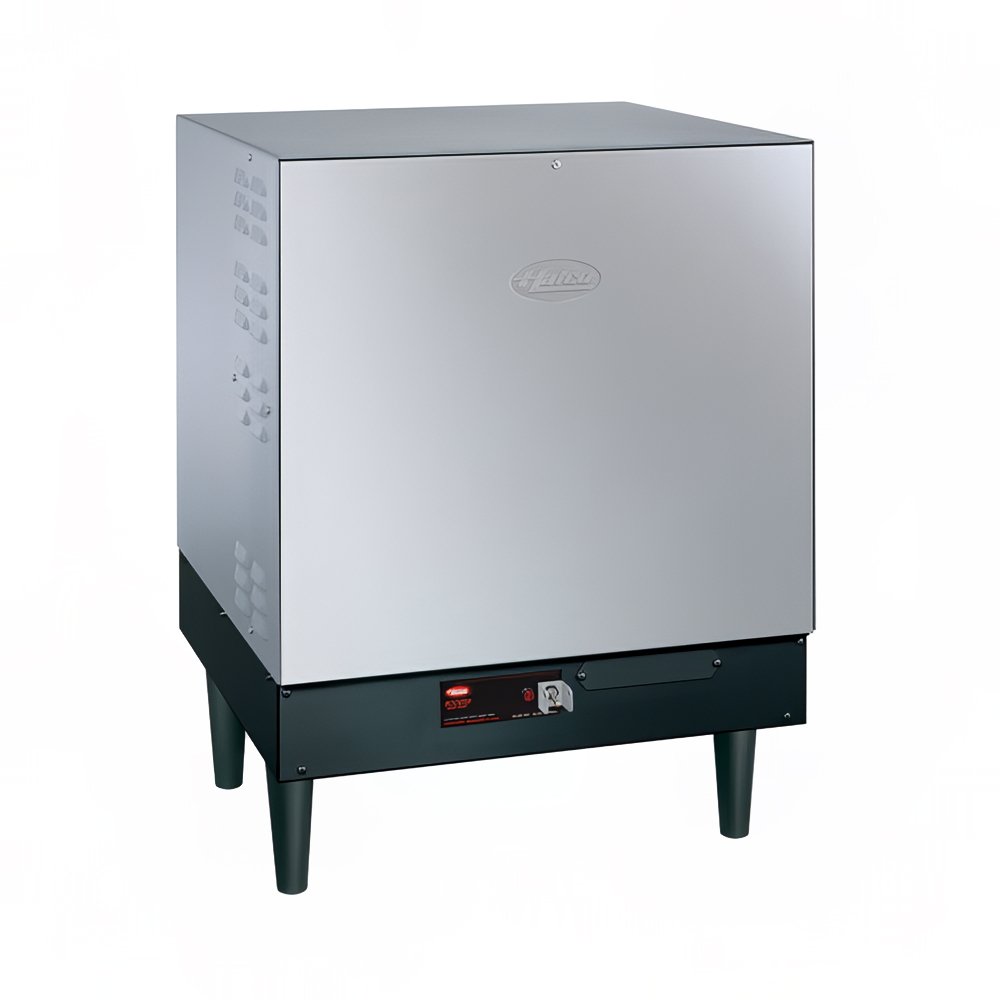

Hatco S-36 Imperial Booster Water Heater, 16 Gallon, 36 kW, 480v/3ph

To properly sanitize dishes, the Hatco S-36-480-3-QS Imperial booster heater raises the rinse water temperature to 180 degrees Fahrenheit. For use with low-temp dishmachines, the temperature can be set to 140 degrees Fahrenheit. The tank can hold 16 gallons of water and has a corrosion-resistant Castone® lining.

The Hatco S-36-480-3-QS Imperial booster heater has a low-water cut-off feature that shuts the heating elements down when the water level gets too low. Excess water is drained through the pressure/temperature relief valve. Pressure and temperature gauges enable user to check the levels. The fiberglass insulation and integrated heat trap keep heat retained in the unit. Its stainless steel front and powder-coated hammertone sides are damage resistant.

Features

• Water is heated to 180 degrees F for high-temperature warewashers
• Temperature can be set to 140 degrees F for low-temperature warewashers
• 16-gal. tank capacity
• Castone lining prevents corrosion in the tank
• 573 gal. of water can be dispensed per hour
• Temperature and pressure gauges monitor levels
• Damage-resistant stainless steel front with hammertone sides
• Heat is retained by the built-in heat trap and fiberglass insulation
• Front provides easy access for maintenance
• Indicator light notifies user if the unit is turned on
• On/off toggle switch
• 28 1⁄2 in. W x 22 3⁄4 in. D x 31 in. H
• 43.3 A, 36 kW
• 480 V/60 Hz/3 ph
• Temperature/pressure relief valve releases excess water to lower the pressure in the tank
